BEP Waterproof IPX5 6 Gang Illuminated Switch Panel 12v
BEP Waterproof IPX5 6 Gang Illuminated Switch Panel 12v
Out of stock
SKU:499276
5020001000965
Couldn't load pickup availability

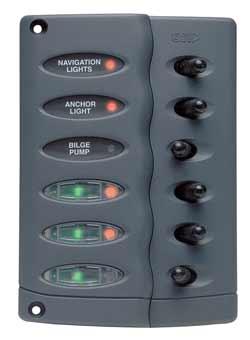

The BEP Marine CSP6 is a waterproof 6-way switch panel designed for marine and other harsh 12V DC environments.
It is part of the BEP Contour series, known for its durable, sprayproof construction.
Key Features and Specifications
Number of Circuits: 6 individual switch positions.
Voltage: Designed for 12V DC systems (can also be used in 24V DC systems according to some sources).
Amperage Rating: Switches are rated for 20A at 12VDC.
Waterproofing: Rated as waterproof to IP56 or IPX5 from the front face due to switches protected by high-quality neoprene rubber boots.
Indication: Features red LEDs for "Systems On" and green LED back-lit labels for visibility in low light conditions.
Construction: Made from high-impact, UV-stabilized plastic with a removable cover plate that conceals mounting screws and includes a water drain.
Dimensions:
Overall 158mm L x 112mm W x 65mm H (6.25 x 4.4 x 2.5
Cut Out 128 x 92mm approx
