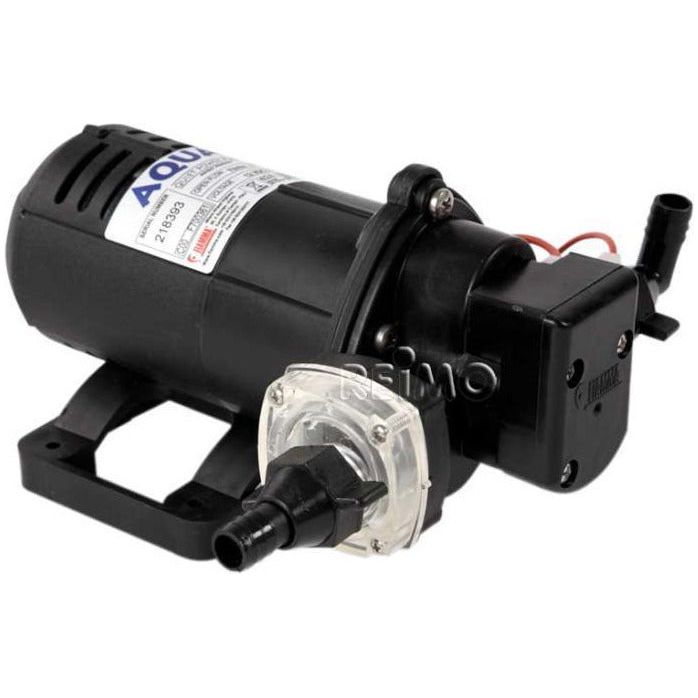

Fiamma Aqua 8 Pump 10L Freshwater Automatic 21psi

• 12V Power supply
• 3.4 A
• 10 litres/minute max flow
• 55/60db noise level
• 1,5 bar
• 21,75 PSI

New improved self-priming pump.

It will pump water vertically over 3m with no priming.

Complete with Silent Kit which eliminates vibrations.

The stainless steel filter prevents impurities from entering and is easily cleaned so the pump lasts longer.

An automatic pressure switch starts and stops the pump by opening and closing the valve.

Non-toxic materials are used for all the parts of the pump that come into contact with water.

The pump is resistant to limestone deposits and oxidation.

Can run dry without damage.

Angle and straight connectors for 13mm pipes standard delivered.

Mount the pump on a solid surface and in a position comfortable for filter cleaning and routine maintenance.

The pump can be installed in any position, in the event of installation in vertical position put the motor above the hydraulic part.

Mount the pump near the water tank in order to obtain the best performance.

Despite the anti-vibration base kit, it is recommended to connect input and output of the pump through a min. 0.5mt and diameter 1/2in (13mm) flexible pipe in order to attenuate the vibrations that otherwise the pump would send to the hydraulic system causing noise.

The installation of the Fiamma A20 expansion tank (02478-01-) within the first metre of the implant optimises and stabilizes the performance of the product.

The pump is only for intermittent use and for contact with drinking water, any other use may cause undesired operation.

For safety reasons, it is advisable to always disconnect the negative terminal from the batteries on the vehicle and then work without power during installation.

It is suggested to connect the power cable to the fuse box or to the terminal board and not directly to the battery.

Choose the safest and shortest installation for the power cable. Reduce the length of the power cable as necessary.

Use only cable clamps suitable for the diameter of the power cable for connection to the terminal board.

If incorrect terminals are used, this could cause a voltage drop and increase the formation of heat on the terminal.
