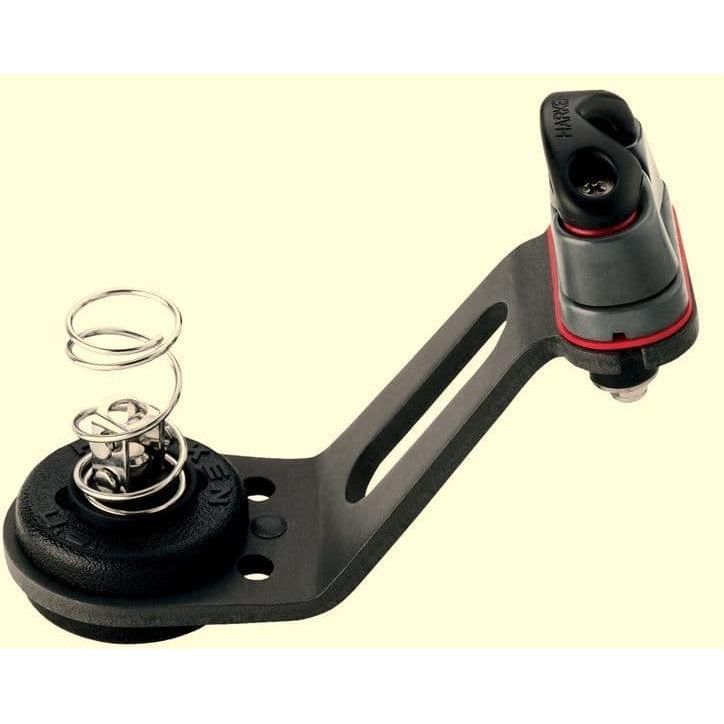

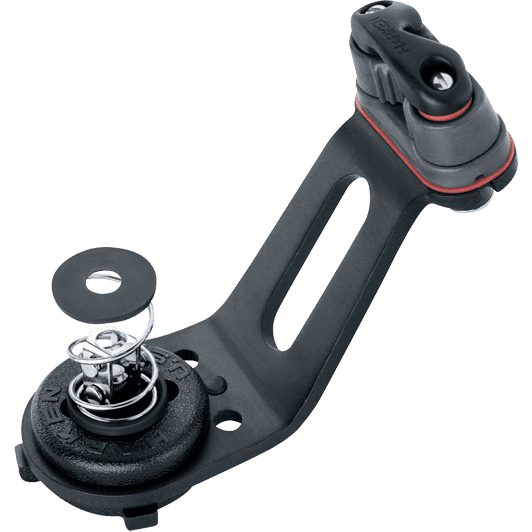

Harken 144 Cam Cleat Swivel Base Dinghy Mainsheets

• Height (mm)146 mm
• Weight (g)369 g
• Minimum line (mm)3 mm
• Maximum line (mm)12 mm
• Fastener spacing (mm)19 mm
• Fasteners (mm)5 FH mm
• Use with 57 mm/75 mm/2.25"/3.00"/ratchets

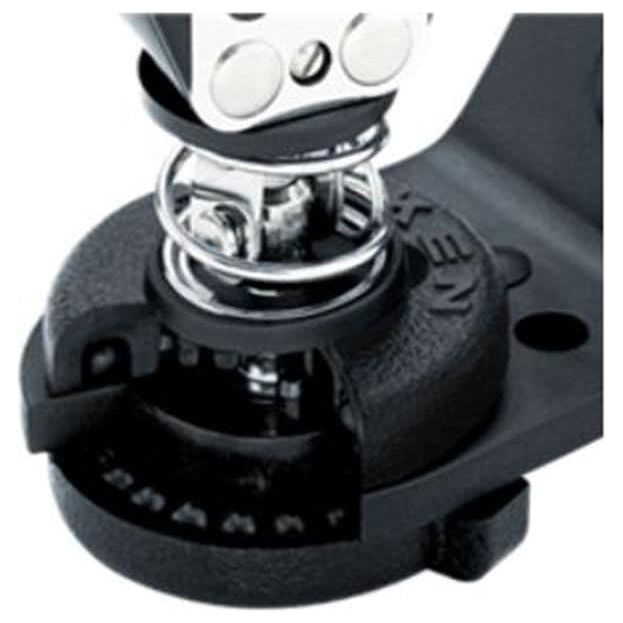

Harken 144 Ball bearing swivel bases feature dual rows of Delrin ball bearings that swivel freely even under high loads. Bases include stand-up springs and a U-adaptor to accept a variety of appropriate blocks. The 144 is the standard configuration with a tall arm.
It is ideal for mounting in the cockpit or for use on larger keelboats and small offshore boats that use 3.00 in (76 mm) plastic blocks.
Use these bases when leads must rotate to face the trimmer under load.
Typical uses mainsheets, jib sheets and control lines on Dinghies, keelboats and small yachts.

Supplied with base and cleat Spring and spacer together with adapters for 57mm and 75mm Carbo Blocks.

The purchaser is responsible for choosing the correct product for its particular application.
Not to be used for lifting Humans.
