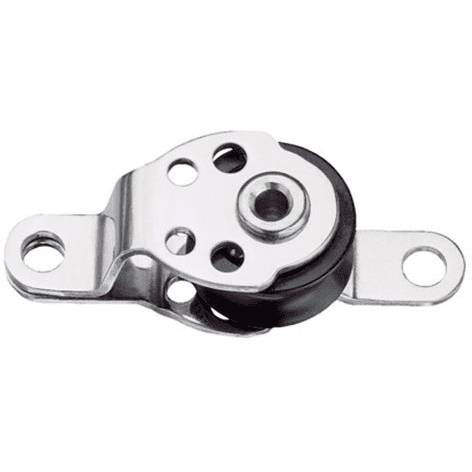

Harken 16mm Cheek Air Block 416 5mm max line diameter

• Sheave (mm)16 mm
• Length (mm)46 mm
• Weight (g)12 g
• Maximum line (mm)5 mm
• Fasteners (mm)4 RH mm
• Maximum working load (kg)113 kg
• Breaking load (kg)544 kg

Designed to be face mounted on either a deck or mast with 2 x 4.5mm holes. The 16 mm is Harkens smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.

The purchaser is responsible for choosing the correct product for its particular application.

Not to be used for lifting Humans.
