Harken 30 Self-Tailing Performa Winch 2 Speed

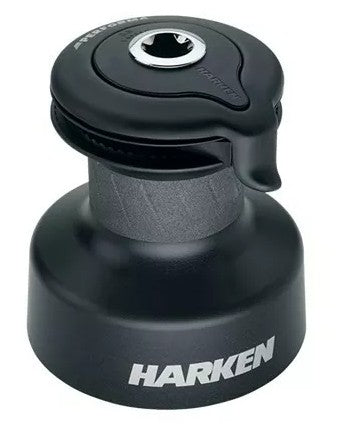

Harken 30 Self-Tailing Performa™ Winch — 2 Speed

Maximum line Ø (mm) 10 mm

Speed 2

Power ratio - 1 7.8

Power ratio - 2 29.8

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications
Maximum line Ø (mm)    10 mm
Number of fasteners    5
Fasteners (mm)    M6 SH mm
Fasteners (in)    1/4 SH in
Fastener circle (mm)    100 mm
Fastener circle (in)    4 in
Minimum line Ø (mm)    6 mm
Speed    2
Drum Ø (mm)    73 mm
Drum Ø (in)    2 7/8 in
Base Ø (mm)    120 mm
Base Ø (in)    4 3/4 in
Line entry height (mm)    59 mm
Line entry height (in)    2 3/10 in
Gear ratio - 1    1.1
Gear ratio - 2    4.25
Power ratio - 1    7.8
Power ratio - 2    29.8
