Sta-Lok Stud Swageless (UNF) 036

Out of stock

SKU:447431

5023282297284

£39.99 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

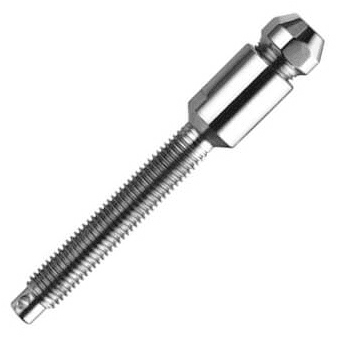

UNF Sta-Lok Stud 7mm Wire 1/2" Thread

Provide standard end fittings for wire rope.
Designed to suit most turnbuckles and fixing points.
Sizes 3 - 26mm are listed, larger sizes are available on request.
Available with right hand thread only.

The UNF Thread is the most common Marine thread for use with Turnbuckles/Bottlescrews because of the fine thread, giving fine adjustments required for rig tuning and is less likely to shake free.

Product details
Cat Ref	Wire mm	A	B	UNF C
036-03	3	62	56	1/4
036-04-1/4	4	62	56	1/4
036-04	4	64	59	5/16
036-05-5/16	5	65	59	5/16
036-05	5	78	67	3/8
036-06-3/8	6	84	67	3/8
036-06	6	93	75	7/16
036-07-7/16	7	95	75	7/16
036-07	7	97	81	1/2
036-08	8	98	81	1/2
036-08-5/8	8	110	95	5/8
036-10	10	111	95	5/8
036-10-3/4	10	129	124	3/4
036-11	11	139	124	3/4
036-12	12	139	124	3/4
036-12-7/8	12	168	140	7/8
