Stainless Rigging Screw Closed Body Fork & Swage Stud included

Low stock: 5 left

SKU:785330

5023282330042

£29.99 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Size 3mm Fork and Swage 1/4 Unf Stud BW-120306A 4mm Fork and Swage 5/16" Unf Stud BW-120408-A

Material: stainless steel

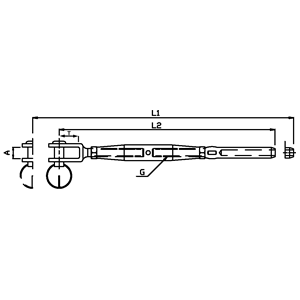

Please refer to technical drawing and table below for sizes

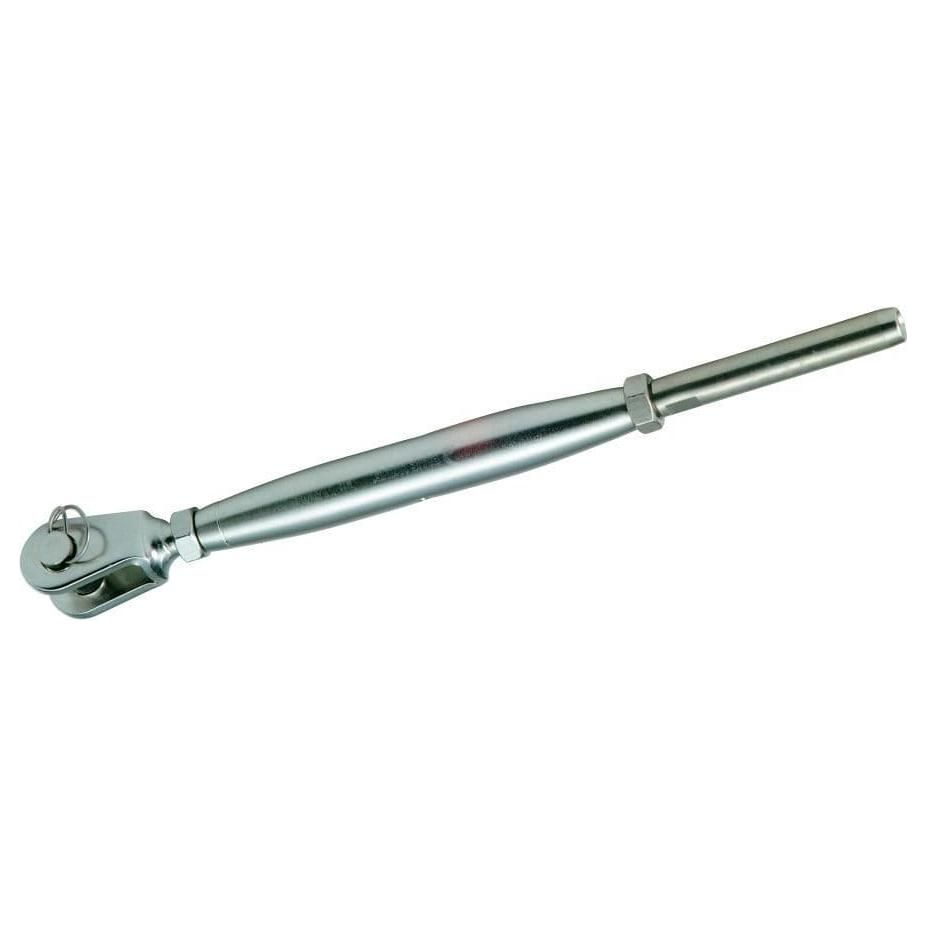

Stainless Steel Rigging Screw with a Clevis Fork at one end for ease of secure connection and Stud/swage on the other end to swage onto the wire.

Price includes the swaging and measuring onto Stainless Wire 1 x 19 standing rigging wire or 7 x 19 Stainless Steel flexible wire.

The purchaser is responsible for choosing the correct product for its particular application.

Not to be used for lifting.

Part	G	Wire Dia	Pin Dia	A	L1	L2	T	Break
Part	UNF	mm	mm	mm	mm	mm	mm	Load Kg.
BW-120306-A	1/4 ins	3	6.35	9.5	233	170	13	1300
BW-120408-A	5/16 ins	4	8	11	275	199	15	1700
