Stainless Steel Eyebolt Large Collar Marine
Stainless Steel Eyebolt Large Collar Marine
22 in stock
SKU:646460
5023282353201
Regular price
£9.59 GBP
Regular price
Sale price
£9.59 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Polished AISI Stainless Steel finish.

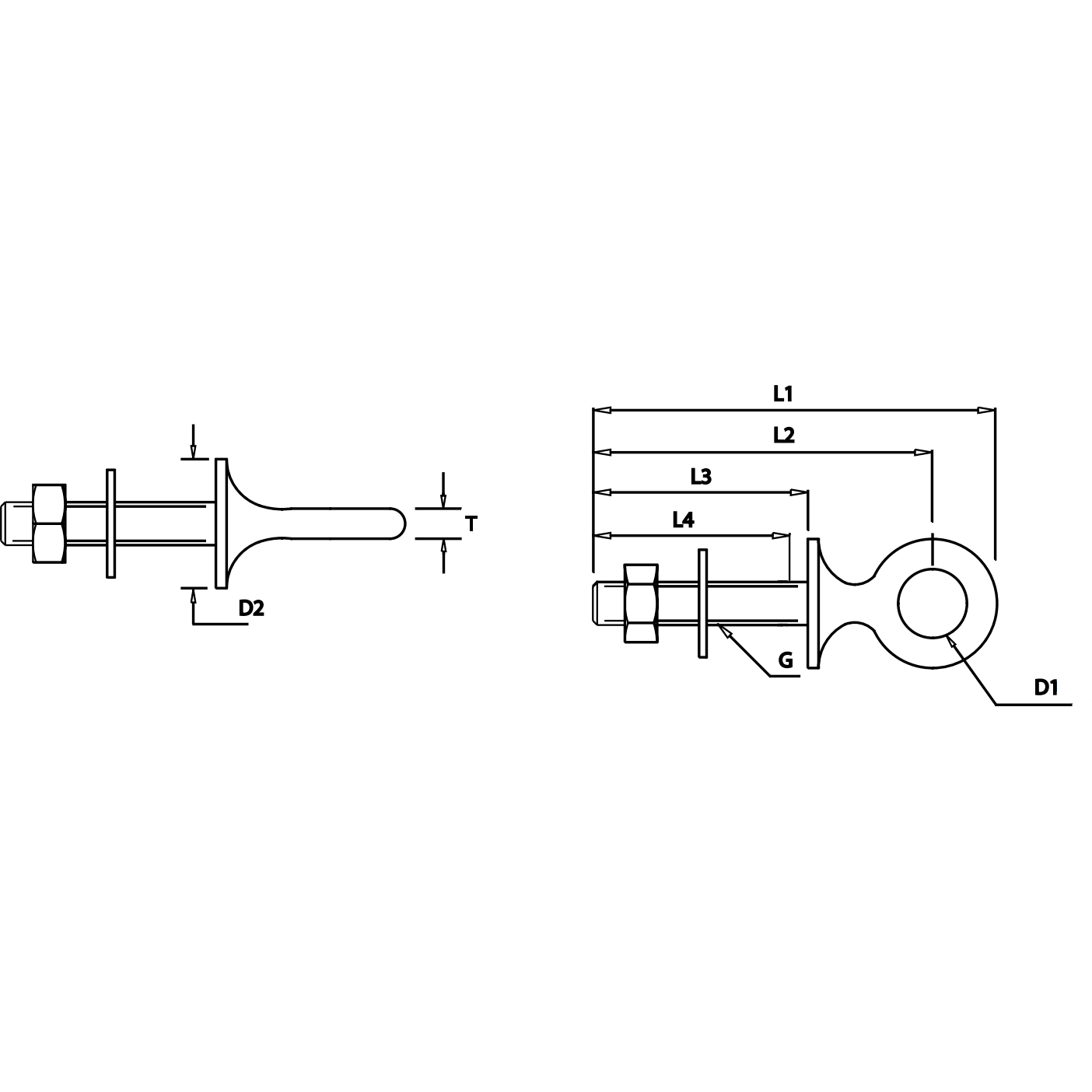

- Please see drawing of the details in the images.

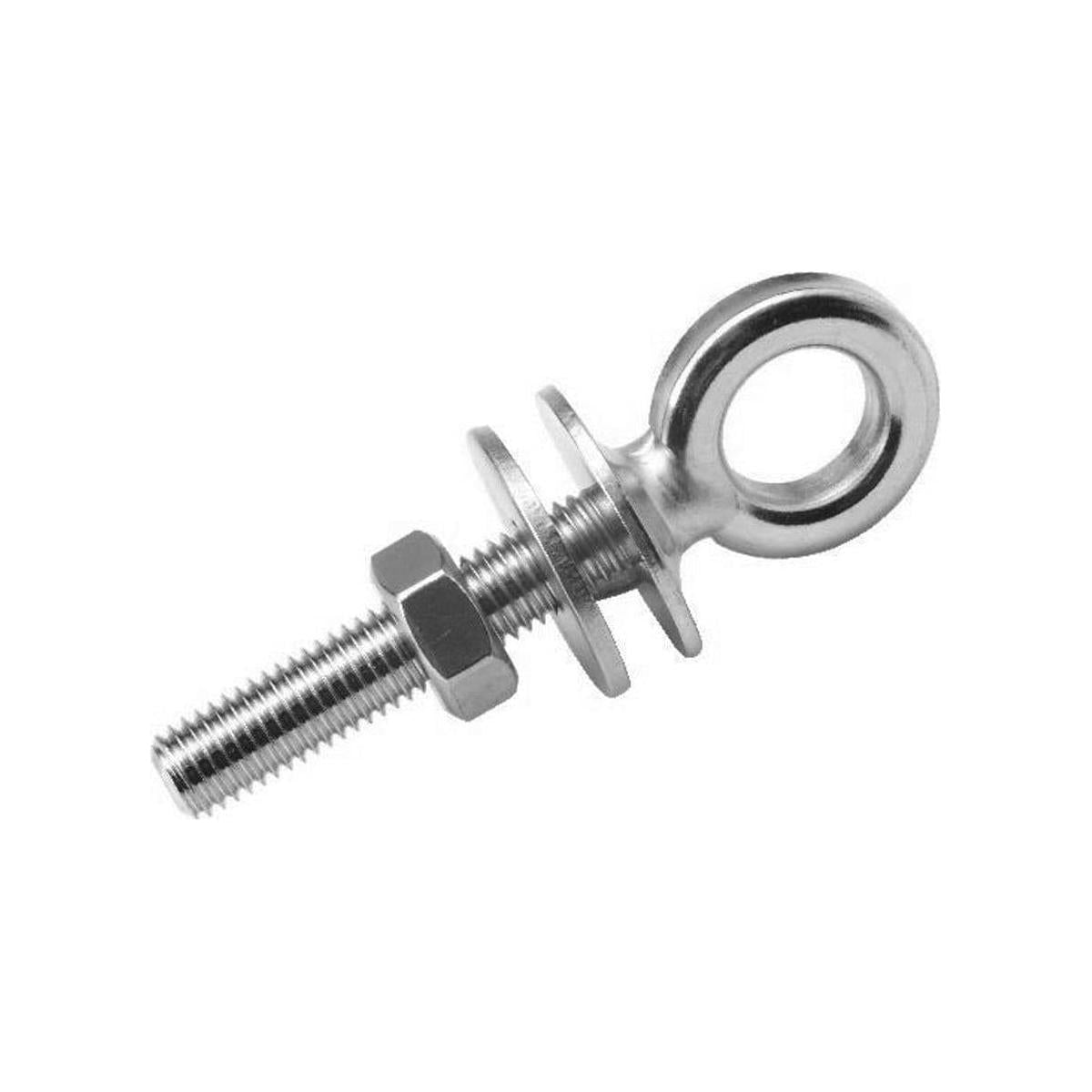

These Blue Wave Polished Stainless Steel Eyebolts are welded with a forged eye and are supplied with a pre-welded cover disc, washer and nut offers a strong attachment point.
Can be used Swaged forks or eyebolts in marine and external rigging requirements.
| SKU | Part | G | L3 | L1 | L2 | B1 | B2 | D | Thread | B/Load |
| mm | mm | mm | mm | mm | mm | mm | Kg. | |||
| 646460 | BW-370835 | M8 | 35 | 66 | 53 | 25 | 6 | 15 | 35 | 2200 |
| 440809 | BW-371000 | M10 | 100 | 135 | 120 | 30 | 7 | 16 | 95 | 3500 |
