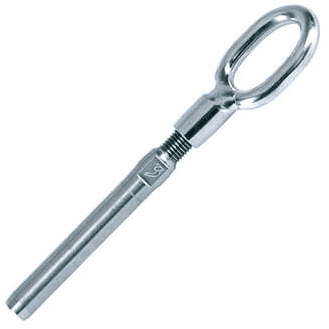

Swage Removable Guardrail Eye 4mm Stainless Steel
Swage Removable Guardrail Eye 4mm Stainless Steel
Low stock: 9 left
SKU:440663
5023282293705
Couldn't load pickup availability
- Material: stainless steel
- Removable
This Guardrail Eye or Lifeline Eye is designed to be removable to slide the stud through the tops of Stanchions and fix at the stern with rope to tension the wire rather than using a rigging screw /bottlescrew.
Listing including measuring and swaging onto 4mm wire.
The diameter of the stud on the eye terminal when the eye has been unscrewed is 8mm allowing it to be threaded through the stanchion tops.
Before assembly use thread lock on the thread and after assembly make sure the eye is firmly tightened onto the stud.
The purchaser is responsible for choosing the correct product for its particular application.
These goods should not be used for over head lifting unless specified.

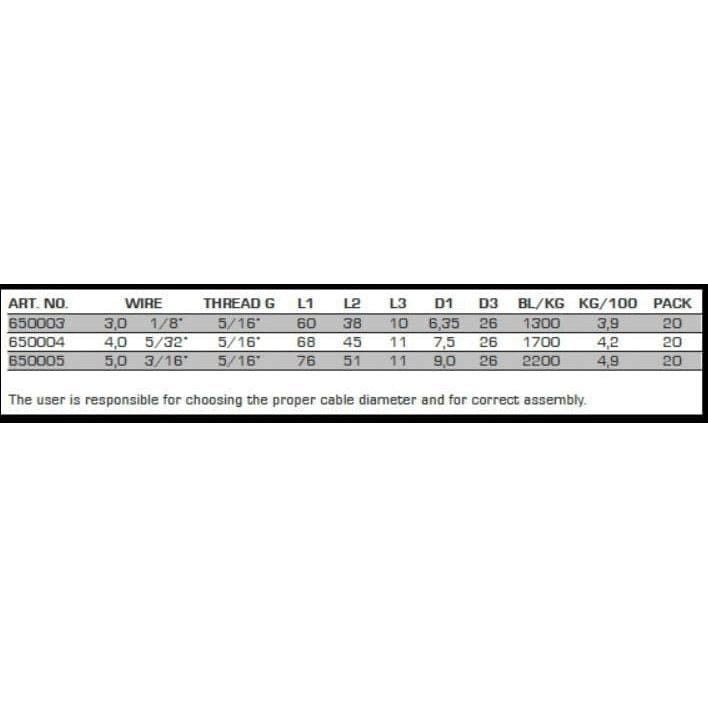

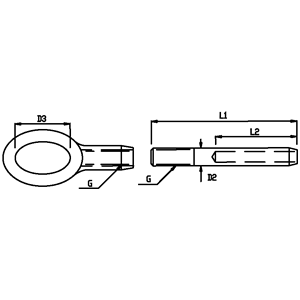

| Part | Wire Ø mm |
L1 mm |
L2 mm |
G UNF |
D2 mm |
D3 mm |
|---|---|---|---|---|---|---|
| BW-650004 | 4 | 68 | 45 | 5/16 | 7.50 | 27 |
