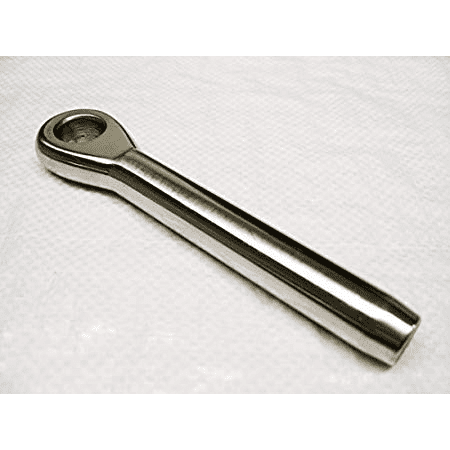

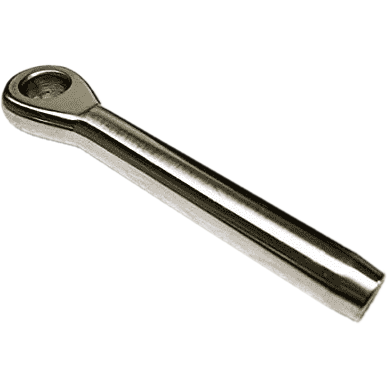

Swaged Eye Terminal 3mm-4mm Stainless Steel Wire

Low stock: 7 left

SKU:441598

5023282294436

£10.79 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Metric Wire Size 3mm 4mm

Price includes Swaging the wire onto the Terminal.
Can be used in conjuction with swageless terminal fixed on site to the exact length, or we can make up to your requirements swaging both ends.
Please contact us via email dave.porter@gapcd.co.uk or call 079683 46327 with your requirements or just order in our shop.
All sizes in mm

The purchaser is responsible for choosing the correct product for its particular application.

These goods should not be used for over head lifting unless specified.

Part	Wire	D2	D3	L1	L2	A	Break
Part	Dia mm	mm	mm	mm	mm	mm	Load Kg.
BW-190003	3	6.4	6.5	55	38	4	1300
BW-190004	4	7.5	8.5	67	45	5	1700
BW-190005	5	9	10.5	76	51	6	2400
BW-190006	6	12.6	13	94	64	8	5500
BW-190006-X	6	12.6	13.2	105	64	10	5500
BW-190007	7	14.2	13	104	70	9	6800
BW-190007-X	7	14.2	13.2	110	70	10	6800
BW-190008	8	16	14.5	118	83	10	8700
BW-190008-X	8	16	16.5	141	83	12	8700
