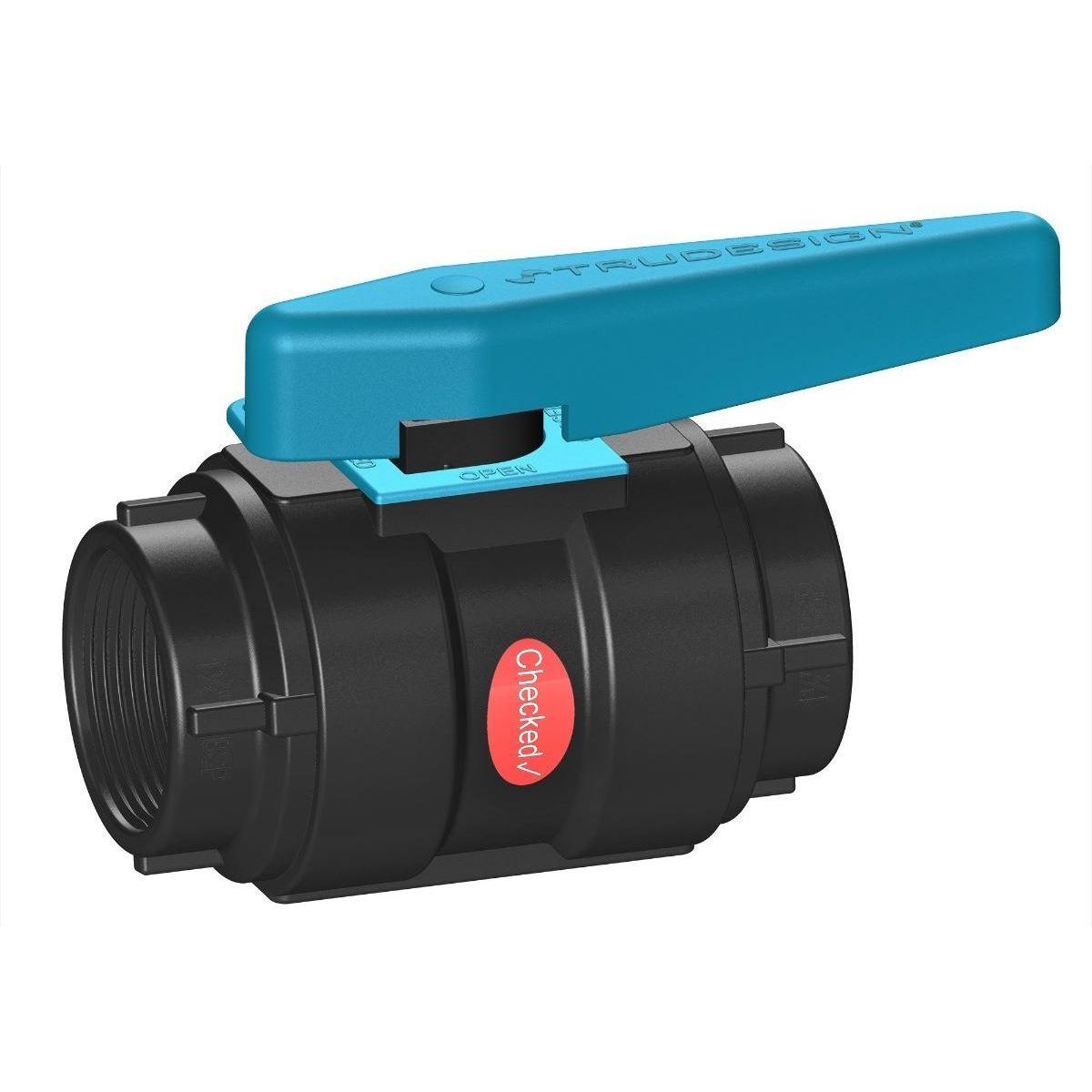

Trudesign Ball Valve 1 1/2" Black

TRUDESIGN™ Ball Valves
Designed and made in New Zealand TRUDESIGN Certified Ball Valves are specifically designed for use in marine
applications above and below the water line.
• Certified to ISO 9093-2 by the International Marine Certification Institute (IMCI, Belgium) when fitted to
TRUDESIGN Skin Fittings (Thru Hulls)
• Comply with ABYC H-27 standards when (where needed) used in conjunction with the TRUDESIGN ABYC
collar and Skin Fittings (Thru Hulls).
• Certified by Bureau Veritas to ISO 9093-2

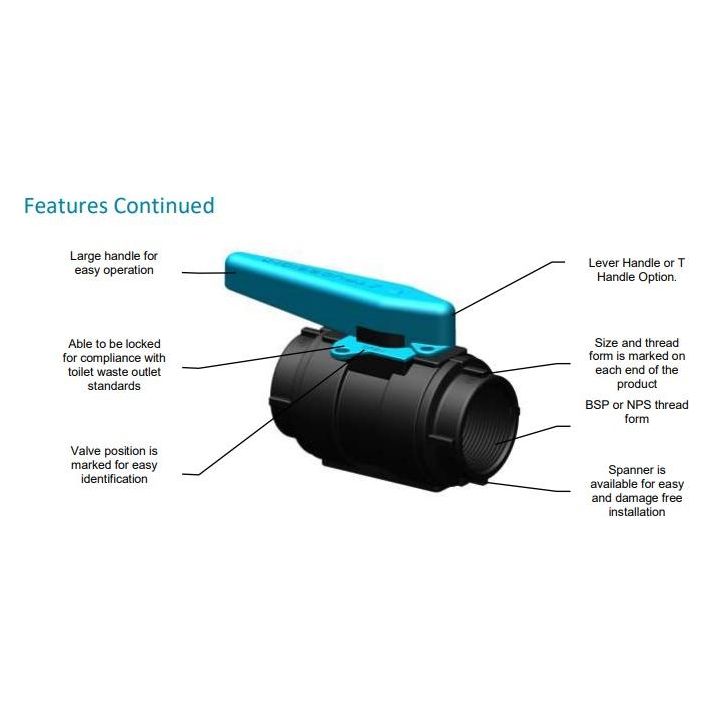

Features
• Manufactured from a glass-reinforced Nylon composite – High strength, tough and light weight.
• Immune to corrosion & electrolysis – No corrosion or breakages, increased safety.
• Electrically non-conductive. No electrical bonding.
• Suitable for use on all hull types - aluminium, steel, wood or FRP.
• The ball and sealing rings utilise a PTFE polymer to ensure a smooth action and minimal fouling of the
internal ball.
• The Ball Valve and can be locked in the closed position to comply with toilet waste outlet regulations.
• Large operating range – Suitable for all marine conditions from -40°C to +110°C
• Available in both BSP and NPS thread forms.
• Can be used in Engine Rooms
• “T” Handle or “Lever” Handle options.
• Handle Identification Tags available to easily identify Ball Valve Function.
• U.V resistant – No degradation from the sun’s ultraviolet rays.
• 100% leak tested before leaving factory.
