U Bolt Stainless Steel by Blue Wave

Low stock: 9 left

SKU:444055

5023282295297

£9.35 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Sizes M6 x 35mm M8 x 50mm M8 x 80mm

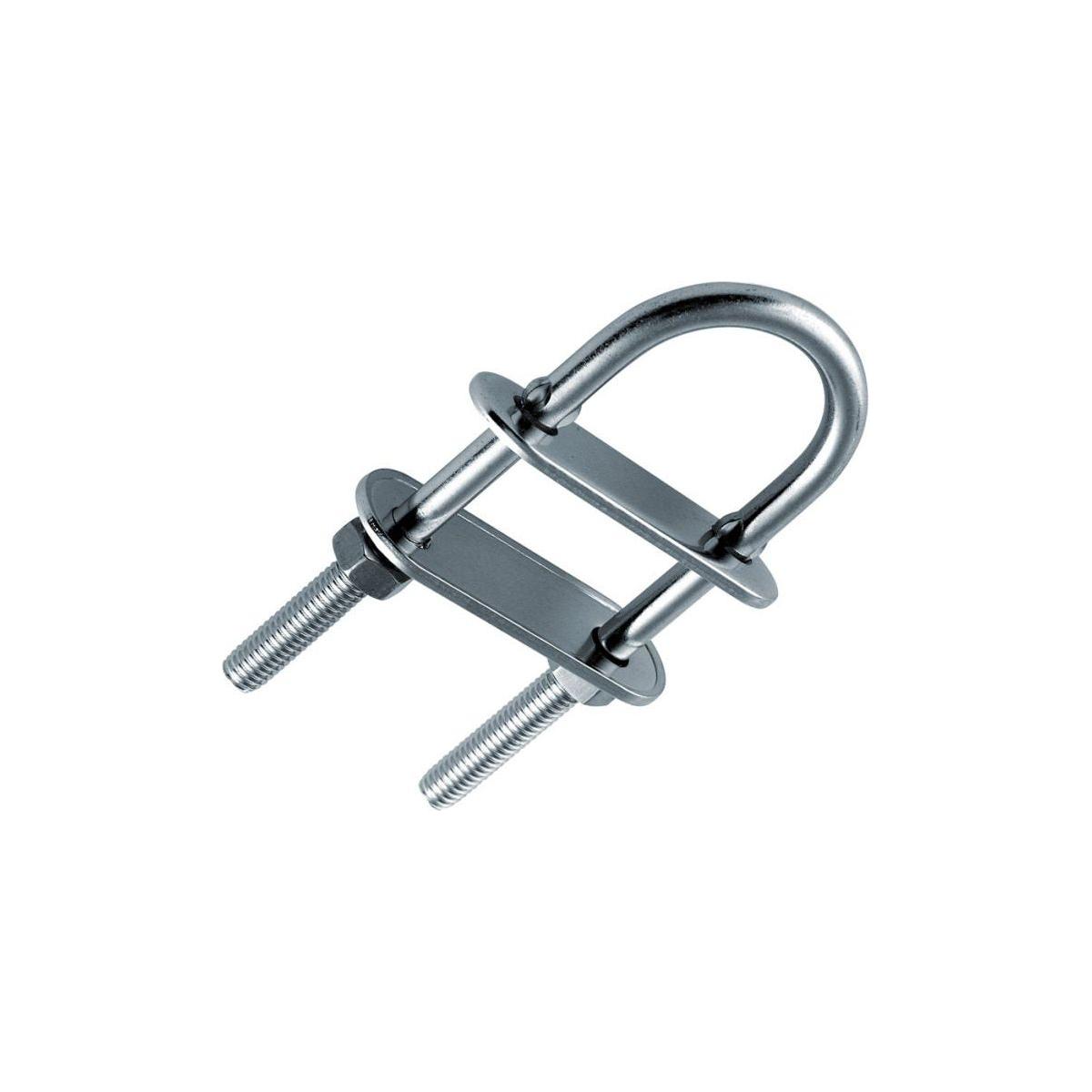

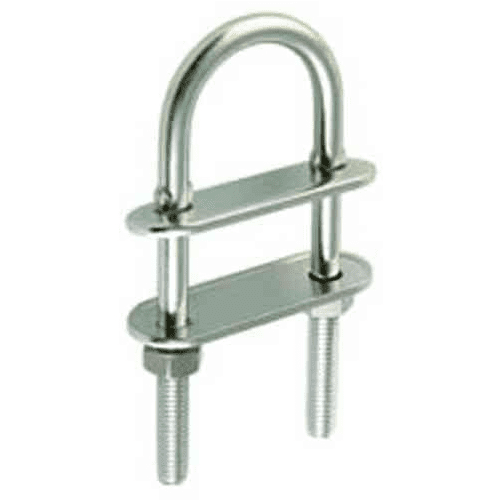

Polished Stainless Steel U Bolt

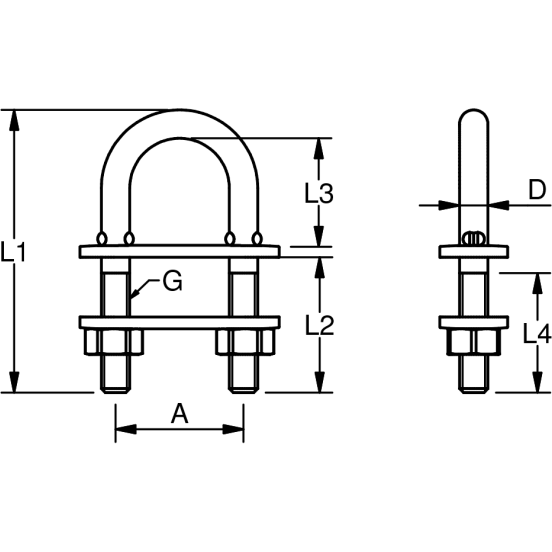

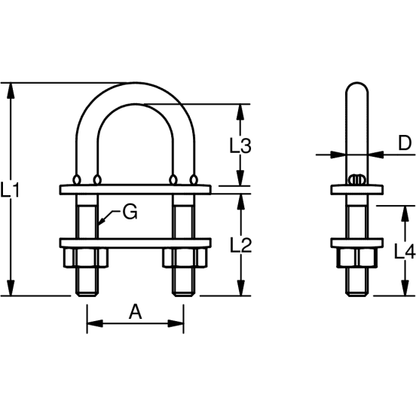

Refer to technical drawing when viewing the sizes in the table below

A general purpose U bolt that can be used for rigging shrouds, an attachment point for trailers, or holding up pipes or beams.

The polished stainless steel material ensures that your fixing will last for a long time.

Made by Bluewave in Sweden.(AISI 316)

Part Number	G Thread	L1	L2	L3	L4	B	D	Break
Part Number	G Thread	mm	mm	mm	mm	mm	mm	Load Kg.
444055	M6	84	50	26	30	27	5.3	1250
443195	M8	86	50	26	30	25	7.1	1750
589146	M8	116	80	26	45	25	7.1	1750
