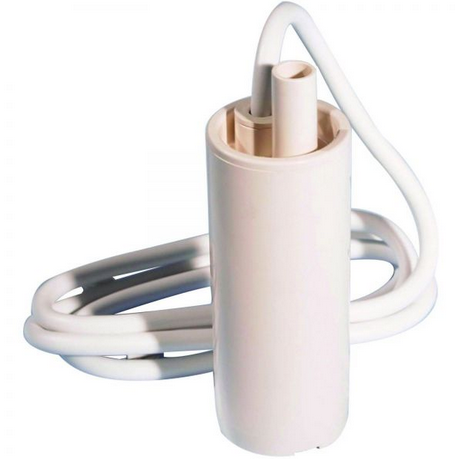

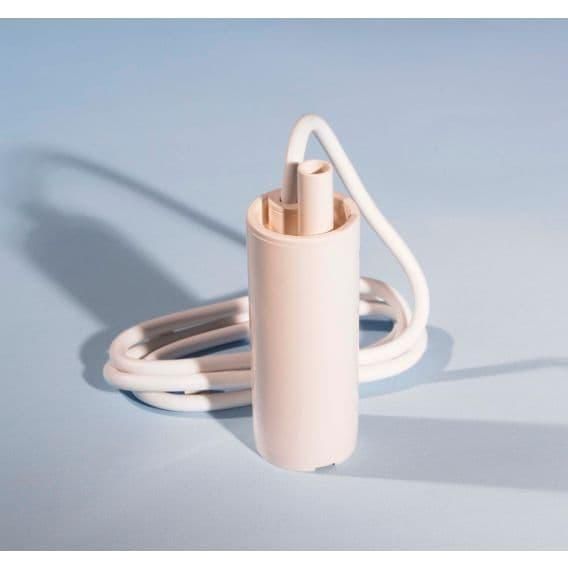

Whale Standard 12v Submersible Pump GP1002

• Whale's high flow rate long life submersible impeller pumps
• Simple, compact and an economical solution
• Long life, very quiet with low power consumption
• It is an inexpensive way to update a manual to an electric system
• Standard Submersible Electric Galley Pump GP1002
• Delivers up to 10 ltr/min (Depending on the discharge head)
• Draws 2.4 amps
• Pressure 0.6 Bar
• 12 V d.c.
• Recommended fuse 5amp
• Connects to 11mm hose and using the 15mm adapter supplied quick connection
• Size approx 112mm long(Including spout) x 40mm diameter

• The Whale standard submersible pump is a simple, compact and economical solution. It has a long life and is very quiet with a low power consumption. An inexpensive way to update a manual to an electric system, it can be used with pressure and micro switch systems.

  • Flow rate of 10 lpm
  • Draw 2.4 amps
  • 12V
  • GP1002

The GP1002 is part of the Whale electric freshwater pump range includes models with the very latest electronic technology. All pumps are manufactured from only highest quality in house moulded parts and robust motors.
They have developed pump designs based on more than 60 years of expertise. They have used that experience to develop the most compact, quiet lightweight high performance electric impeller pumps.

For best performance:
Maximum continuous operation should not exceed 15 minutes
Do not run pump dry as it will cause pump damage
Do not use to pump water that is over 60oc
We recommend the pump stands vertically in the tank
Before switching on, place the pump in water and shake for a few seconds to release trapped air. This will ensure successful priming and should be repeated after refilling the water tank
Add an in-line pump into a system to boost water flow

Can be used on boats, caravans and leisure homes
